CARACTERÍSTICAS DE HARDWARE

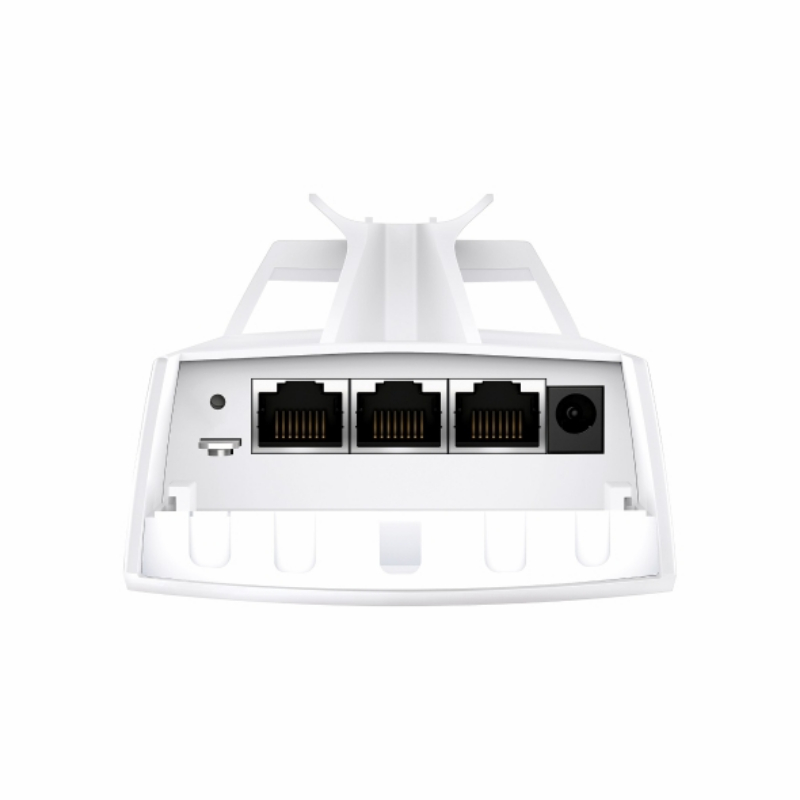

Interfaz 3x Gigabit Ethernet Ports*6
Botones Reset
Fuente de Alimentación 12V DC / 24V Passive PoE (Passive PoE adapter included.)
Consumo de Potencia 11.5W
Dimensiones 3.1 x 2.4 x 8.8 in (79 × 60 × 224 mm)
Tipo de Antena Internal 2×2 Dual-polarized directional MIMO antennas
5 GHz: 7.0 dBi
Horizontal:70°, Vertical: 70°
Carcasa resistente a la intemperie IP65
Montaje Pole Mounting (Accessories included)
CARACTERÍSTICAS INALÁMBRICAS
Coverage 1000m5
Estándares Inalámbricos IEEE 802.11 a/b/g/n/ac
Frecuencia 5 GHz
Tasa de Señal 5 GHz: Up to 867 Mbps
Funciones Inalámbricas " Mesh*4
" MU-MIMO: 5G 2x2 MU-MIMO DL
" Load Balance
" Seamless Roaming(802.11r)
" Beamforming
" Airtime Fairness
" Multiple SSIDs:8
" Wireless Statistics
" Wireless Schedule
" Reboot Schedule
" RADIUS Accounting
" MAC Authentication
" Static IP/Dynamic IP
Seguridad Inalámbrica " VLAN
" Access Control
" Rogue AP Detection
" Captive Portal Authentication*4
" Maximum number of MAC Filter: 4,000
" WPA-Personal/Enterprise, WPA2-Personal/Enterprise
Potencia de Transmisión " CE:
<23dBm (5 GHz, band 1/2, EIRP);
<30dBm (5 GHz band3, EIRP);
" FCC:
<22dBm (5 GHz band1/4)
GESTIÓN
Omada App Yes
Restore & Backup Yes
Firmware update via Web Yes
NTP Yes
Gestión Centralizada " Omada Hardware Controller (OC300)
" Omada Hardware Controller (OC200)
" Omada Software Controller
" Omada Cloud-Based Controller
Acceso a la nube Yes. Require the use of OC300, OC200, the Omada Software Controller, or Omada Cloud-Based Controller.
LED de control ON / OFF Yes
Control de Gestión de Acceso MAC Yes
SNMP v1, v2c, v3
SSH Yes
Gestión basada en Web Yes
Otros
Certificaciones CE, FCC, RoHS
Contenido del Paquete " EAP211-Bridge KIT
" Passive PoE Adapter
" Power Cord
" Installation Guide
" Mounting Kit
Factores Ambientales " Operating Temperature: -40 °C70 °C (-40 °F158 °F);
" Storage Temperature: -40 °C70 °C (-40 °F158 °F);
" Operating Humidity: 10%90% non-condensing;
" Storage Humidity: 5%90% non-condensing
