PN:90SB0A90-M0UAY0
PLACA BASE ASUS SERVER P12R-E
LGA1200/C256/VGA, HDMI/ ATX
PN:90SB0A90-M0UAY0
PLACA BASE ASUS SERVER P12R-E
LGA1200/C256/VGA, HDMI/ ATX
- ●Chipset: Intel C256
- ●Formato: ATX
- ●Hdmi: Si
- ●Imagen Salida: VGA , HDMI
- ●Memoria Maxima: 128GB
- ●Microprocesador Integrado: No
- ●Nº Bancos De Memoria: 4
- ●Nº Conexiones SATA: 8
- ●Nº USB 3.2 Gen1: 2 Traseros, 2 Internos
- ●Nº USB 3.2 Gen2: 2 Traseros, 2 internos
- ●Pci: 3 PCIe x8, 1 PCIe x16
- ●Raid: Si
- ●SATA 6Gb/S: 8
- ●Socket: Intel LGA 1200
- ●Tecnologia De Memoria: DDR4
- ●USB3.1 Interno: Si
Ideal para uso en oficinas/sucursales remotas (ROBO) y entornos comerciales cotidianos
Equipado con un procesador Intel® Xeon E-2300 de ocho núcleos compatible con TDP de hasta 95 W
Expansión flexible con ocho discos duros SATA nativos y dos ranuras PCIe Gen4
Dual Intel I210AT Gigabit Ethernet con soporte para equipos
Soporte dual M.2 hasta 22110 PCIe Gen4 x4 Link y PCIe Gen3 x2 Link
Soporte HDMI 1.4 para mantenimiento y monitoreo de pantallas de alta resolución
ASUS ASMB10-iKVM opcional con controlador ASPEED AST2600 para gestión fuera de banda
PFR FPGA opcional como solución raíz de confianza de la plataforma para la resiliencia del firmware
Especificaciones:
Processor / System Bus
1 x Socket LGA1200
Intel® Pentium® Processors
Intel® Xeon® E processors
Core Logic
Intel® C256 Chipset
Memory
Total Slots :
4 (2-channel)
Capacity :
Maximum up to 128GB UDIMM
Memory Type :
DDR4 3200/2933/2666 UDIMM
Memory Size :
32GB, 16GB, 8GB
* Refer to support page for more information
Expansion Slots
Total Slot : 4
Slot Location 1 : PCI-E x8 (Gen3 X4 Link)
Slot Location 2 : PCI-E x8 (Gen3 X4 Link)
Slot Location 4 : PCI-E x8 (Gen4 X8 Link)
Slot Location 6 : PCI-E x16 (Gen4 X16 Link), Auto switch to x8 link if slot 4 is occupied
Form Factor
ATX (12"x9.6", 305mm x 244mm)
Storage
Storage Controller :
8 x SATA3 6Gb/s ports by 4 Mini-SAS HD connectors
2 x M.2 connector(2242/2260/2280/22110) both SATA & PCIe mode *
*Gen4 x4 Link & Gen3 x2 Link,gray SATA port will disable when M.2 is SATA signal
SAS Controller :
ASUS PIKE II 3008-8i 8-port SAS 12G RAID card
ASUS PIKE II 3108-8i 8-port SAS 12G HW RAID card
Networking
2 x Intel® I210AT + 1 x Mgmt LAN
Graphic
Aspeed AST2600 with 64MB VRAM (VGA from BMC)
On Board I/O
1 x VGA Header (VGA from BMC)
1 x HDMI (useable only with iGPU)
1 x TPM header
1 x COM port
1 x PS/2 KB/MS port
1 x Onboard header for optional management card
6 x Fan Header , 4pin
1 x SMBus
1 x Chassis Intruder
4 x Front LAN LED
1 x Serial Port Header
1 x PSU Power Connector (24-pin ATX power connector + 8-pin ATX 12V power connector)
2 x M.2 Connector
2 x USB3.2 Gen2 ports
2 x USB3.2 Gen1 ports
1 x USB3.2 Gen1 header

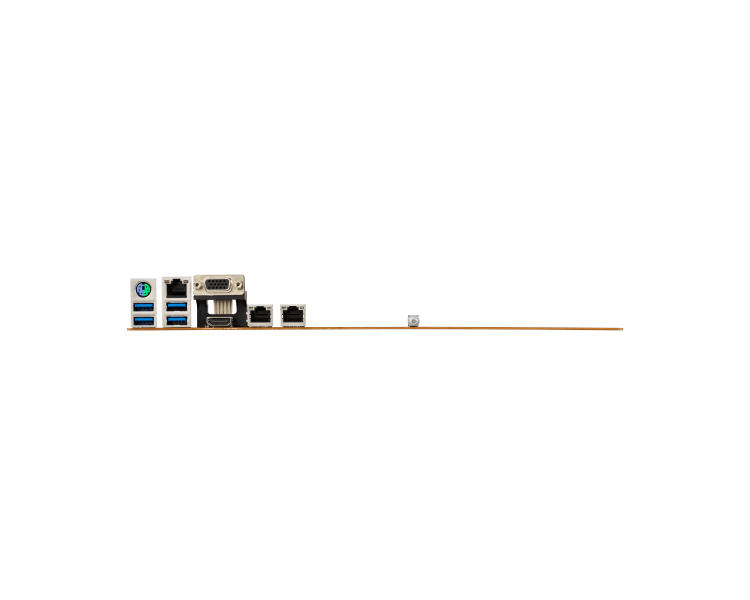

Back I/O Ports
2 x USB 3.2 Gen 2
2 x USB 3.2 Gen 1
1 x HDMI Port (useable only with iGPU)
1 x VGA Port (VGA from BMC)
2 x GbE LAN + 1 x Mgmt LAN
1 x PS/2 KB/Mouse
Management Solution
ASUS Control Center Enterprise (Optional)
ASMB10-iKVM for KVM-over-Internet(Optional)
Weight
Gift Box (1-in-1)
Net Weight : 0.76 KG
Gross Weight : 1.3 KG
Bulk Pack (10-in-1)
Net Weight : 6.9 KG
Gross Weight : 9.5 KG
Environment
Operation temperature: 10 ~ 50*
Non operation temperature: -40 ~ 70
Non operation humidity: 20% ~ 90% ( Non condensing)
*The boundary condition above is based on 8.3W of PCH TDP spec . If the LFM estimate is higher than acceptable value from customer, ASUS can provide boundary condition with raw power for reference.
Monitoring
CPU Temperature
Fan RPM
Las especificaciones e imágenes están sujetas a cambios sin previo aviso. Todas las marcas y logotipos son propiedad de sus respectivos fabricantes. La foto puede mostrar otros productos que se venden por separado.
